Abstract

In this paper, a parametrization strategy based on reduced order methods is presented for tumor growth PDE models. This is applied to a new simple spatial model for lung metastasis including angiogenesis. The goal is to help clinicians monitoring tumors and eventually predicting their evolution or response to a particular kind of treatment. To illustrate the whole approach, a clinical case including the natural history of the lesion, the response to a chemotherapy, and the relapse before a radiofrequency ablation is presented.

Keywords

Clinical data assimilation Medical imaging Partial differential equations Tumor growth modeling

Background

Introduction

The metastatic disease to the lung is frequently encountered in patients with cancer whatever the primary location, and it has been associated with poor prognosis. The incidence of such disease in patients who have died of an extrathoracic malignancy is reported to be of 20% to 54% [1]. Nevertheless, limited pulmonary metastatic disease can now be successfully treated not only for palliative reasons. By controlling the primary tumor and in the absence of widely disseminated disease in many organs, the resection or the ablation of pulmonary metastases may prolong survival, improve the quality of life, and, in some cases, ensure cure [2]. During the last decade, a better management of the metastatic disease to the lung has been achieved by the evolution of imaging, medical oncology, and surgical techniques. There has been improvements in CT imaging quality and scan time [3], as well as advances in the field of nuclear medicine and MRI [4] which can give more precise information on the location and extent of the disease. In particular, there has been widespread use of PET/CT for evaluating patients with metastatic pulmonary disease, which can early detect metabolically active metastatic disease [5]. The targeted oncology treatments can achieve improved responsiveness, and the resection of the lesion turns to be possible now with minimally invasive surgical techniques as well as percutaneous thermal ablations (see [6-8]). In order to continue this trend and to improve the knowledge of the pulmonary metastatic disease, some authors advocated the development of new tools able to explore the first steps of metastatic implantation [9]. The majority of pulmonary metastases are derived from cancer cells that enter the lungs through the pulmonary arteries and disperse in alveolar capillaries. More rarely, metastatic disease is the consequence of lymphatic spreading or development directly in the bronchial tree (see [10]). Most of these cancer cells are able to adhere to the endothelium of the capillaries. However, the cell survival is ultimately determined by local and oncology factors. Although most of these malignant cells do not survive [2], those that survive penetrate the endothelium of the capillaries and install in the pulmonary parenchyma, where they grow. Therefore, a better understanding of this tumor growth could widely have direct clinical applications. Cancer growth modeling aims at describing, understanding, and predicting the evolution of tumors using numerical models. This science is constantly evolving, from the first cellular automata adapted to the microscopic scale to ordinary differential equations describing the global dynamics of the tumor or partial differential equations taking the spatial distribution of the cancer cells into account. If modeling can be used to help biologists understand the complex mechanisms of tumor growth, in this work, the motivation is to develop a tool for clinical oncologists to improve patient monitoring and eventually to predict the response to a treatment of some metastases to the lung. As we deal with medical images, the spatial information is important and partial differential equations seem to be the most adapted method to model tumor growth in our context. A true difficulty is to include in a model the biological interactions, as complex as they are, responsible for the tumor evolution without neglecting that the model must be relevant for in vivo applications, and its parameters need to be recovered from clinical images. Among the diversity of PDE models existing on this topic, we chose, as a starting point, the one developed in [11] for the promising results obtained. The diffusion term for nutrient is replaced by a micro model of angiogenesis (see [12]) which seems more relevant at the medical imaging scale. The goal is to simulate the evolution of a tumor from a given patient so we had to define a calibration method to personalize the model. This method must be a good trade-off between accuracy and computation time. For that purpose, the approach chosen is based on a reduced order method named proper orthogonal decomposition (POD) (see [13] or [14]). The way we address this problem is similar to that of [11]: we first design a PDE model of tumor growth dealing with the spatial distribution of cancer cells with respect to time T(t,x,y). This PDE model contains some parameters that are patient specific. The problem is therefore to determine for which parameters the numerical solution fits the data. Once these parameters have been estimated (we call this step the calibration of the model), one can perform a prediction for a longer time scale. The outline of this paper is the following: in the following paragraph, we present a clinical case of a single metastasis including natural growth, response to a treatment, and relapse. The ‘Methods’ section is devoted to the presentation of the PDE model of tumor growth that we use and the data assimilation technics. Then, the results are discussed in a dedicated part.

A typical clinical case

In this paper, we will focus on a clinical case of a patient with an isolated metastasis in the lung from a primary bladder tumor. The history of the patient is presented in Figure 1.
Figure 1

Extract from a sequence of CT scans showing the evolution of a nodule (a to f).

Figure 1a,b,c shows the CT scans of the natural history of the lesion, i.e. without treatment. The patient has been seen for a radiofrequency ablation on 2008/12/10. At this point, the lesion was too large and the oncologist started a chemotherapy. Figure 1d,e shows the CT scans during the treatment while Figure 1f shows the relapse a month after the end of the chemotherapy. A radiofrequency ablation was performed in July 2009. The questions that we want to answer in this paper are the following ones:
  1. 1.

    Is it possible with Figure 1a,b to estimate Figure 1c?


  2. 2.

    Is it possible with Figure 1a,b,c,d to estimate the efficacy of the treatment Figure 1e and the amount of the relapse Figure 1f?



Methods

A mathematical model for lung metastasis

The model we use in this work is derived from the one described in [11]. We here consider only one kind of cancer cells. The tumor micro environment, and in particular the amount of nutrients available, is essential to explain its evolution. Consequently, instead of directly modeling the nutrient density, we use a very simplified angiogenesis model to take into account the process by which the tumor escapes the avascular stage. The biological hypotheses of the model are the following:
  • One single type of nutrient is considered. Its concentration controls cellular proliferation and death.

  • The amount of nutrients available is proportional to the quantity of blood vessels in the tissue. The nutrient diffusion is not taken into account as it is not relevant at the scale we consider.

  • The only cellular motion we take into account is the passive transport due to volume variations caused by mitosis or cellular death.

  • Cancer cells are continuously switching from the proliferative to the quiescent phenotype.

Cell behavior

The tumor cell density is denoted by T and satisfies the following equation:
$$ \frac{\partial T}{\partial t} + \nabla \cdot (\textbf{v}T) = (\gamma_{p} - \gamma_{d})T, $$
(1)
where v is the transport velocity. The left part of this transport equation satisfies the mass conservation principle, and the source term drives this evolution (proliferation and death) of the cells population. The coefficients for proliferation and death by hypoxia (lack of dioxygen), γ p and γ d , are detailed in Equations 2 and 3. Above a given threshold of nutrient supply M th, cancer cells tend to proliferate whereas below this threshold, they starve to death. The use of a hyperbolic tangent in both γ p and γ d expressions amounts to smoothing and regularizing the threshold functions, and K is a smoothing constant fixed. These functions are given by:
$$ \gamma_{p} (M) = \gamma_{0} \frac{1 + \tanh (K(M - M_{\text{th}}))}{2}, $$
(2)
$$ \gamma_{d} (M) = \gamma_{1} \frac{1 - \tanh (K(M - M_{\text{th}}))}{2}. $$
(3)
From the tumor cells density T and the field γ p , we can have an insight on the proliferative and quiescent cells location. Indeed, the cells that are proliferative were γ p =γ 0 and quiescent elsewhere, so proliferative cells are given by the expression \(P=\frac {\gamma _{p}}{\gamma _{0}}T\) whereas quiescent cells are given by \(Q=\left (1-\frac {\gamma _{p}}{\gamma _{0}}\right)T\). In addition to cancer cells, we also take into account the healthy tissue whose density is denoted by S. We assume here that this healthy tissue is transported at the same velocity as the cancer cells but is globally neither proliferating nor dying. More precisely, cellular birth and death counterbalance each other at the timescales we consider so we have, for S, a transport equation without source term (Equation 4):
$$ \frac{\partial S}{\partial t} + \nabla \cdot (\textbf{v}S) = 0. $$
(4)
As we consider that the tissue is saturated, the sum of the two densities T and S is equal to 1 which gives the value of S (Equation 5) (see [15]):
$$ S=1-T. $$
(5)
Summing Equations 1 and 4, we obtain an equation on v (6):
$$ \nabla \cdot \textbf{v} = (\gamma_{p} - \gamma_{d})T. $$
(6)
This is not sufficient to determine the velocity. However, to close the system of equations (see [16]), we consider that the velocity v is obtained using a Darcy law in Equation 7: v is derived from a pressure or potential π in the tissue.
$$ \textbf{v} = -\nabla \pi. $$
(7)

This formulation amounts to saying that tumor cells are pushed out if they are proliferating or pulled in if they are dying. Here, we could also use a Stokes equation to describe the velocity (see [15]) but it complicates the model without improving significantly its accuracy or biological relevance.

Angiogenesis

At the end of the avascular stage of its development, the tumor reaches such a size that its direct environment is not able to supply enough nutrients to allow the tumor to keep on growing. At this point, cancer cells emit chemical signals such as vascular endothelial growth factor (VEGF) which result in the emergence of a tumoral neovasculature (see [12,17,18]). Research on this phenomenon is very active in particular to develop anti-angiogenic treatments. As most of the metastases visible on medical imaging are in the vascular stage, it was important to take the angiogenesis process into account. However, it is out of reach to model this extremely complex phenomenon in details. We therefore choose to use a very compact model in order to achieve a good balance between the complexity of the model and the feasibility of the data assimilation (see next section). It is described by the last two equations Equations 8 and 9. The scalar variable ξ is the total amount of pro-angiogenic agent such as VEGF. It is secreted by quiescent cells given by the expression \(\int _{\Omega } \left (1-\frac {\gamma _{p}}{\gamma _{0}}\right)T d\omega \), Ω being the computational domain, and evacuated by the organism.
$$ \frac{\partial \xi}{\partial t} = \alpha\int_{\Omega} \left(1-\frac{\gamma_{p}}{\gamma_{0}} \right) T d\omega - \lambda \xi. $$
(8)
As we assume that the quantity of nutrient is proportional to the density of blood vessels in the tissue, we mixed these two notions in the unique variable M we shall call ‘vasculature’. It can be seen as the environment ability to meet the needs of the tumor in term of nutrients and could be related with the carrying capacity introduced in the Hahnfeldt ODE model [19]. The vasculature M is damaged by proliferating tumor cells while angiogenesis is promoted by quiescent cells; it therefore obeys
$$ \frac{\partial M}{\partial t} = - \eta TM + \beta \xi \left(1-\frac{\gamma_{p}}{\gamma_{0}}\right)T. $$
(9)

The model takes into account some important mechanisms involved in tumor growth such as proliferation, death, or angiogenesis. Moreover, it is simpler than the previous one [11] as we just have one sort of cancer cells and there is no transport or diffusion of the vasculature. This trade-off is made to keep the model biologically relevant yet simple enough to be parametrized.

Taking therapeutical effects into account

The model architecture makes easy to include different types of treatment. Chemotherapy effects can be simulated by adding a death term on Equation 1 as −δ T. In this case, Equation 1 becomes:
$$ \frac{\partial T}{\partial t} + \nabla \cdot (vT) = (\gamma_{p} - \gamma_{d})T - \delta T. $$
(10)
To fullfill the saturation assumption, Equation 6 is modified as follows:
$$ \nabla \cdot \textbf{v} = (\gamma_{p} - \gamma_{d} - \delta)T. $$
(11)
We can also take into account an anti-angiogenic drug. In this case, we define a therapeutical indicator through a function denoted by f as:
$$f(t)=\left\{ \begin{array}{ll} 1& \;\; \text{without treatment}, \\ <1& \;\;\text{under treatment}. \end{array}\right. $$
If we consider that it inhibits the production of pro-angiogenic agent, Equation 8 can be modified as follows:
$$ \frac{\partial \xi}{\partial t} = \alpha f(t) \int_{\Omega} \left(1-\frac{\gamma_{p}}{\gamma_{0}}\right)T d\omega - \lambda \xi. $$
If the anti-angiogenic drug also inhibits the growth factor membrane receptors on the endothelial cells, we can add a corresponding term to the vasculature equation 9:
$$ \frac{\partial M}{\partial t} = - \eta TM + \beta \xi f(t) \left(1-\frac{\gamma_{p}}{\gamma_{0}}\right)T. $$

We postpone the modeling of this effect of anti-angiogenic drugs to a future work.

Data assimilation technique

The idea is to use the model that has been described in the previous section to obtain a forecast of the evolution of the lung tumor presented in the ‘Background’. This model contains numerous parameters that have to be recovered using the two images in order to perform the prediction. Some appear explicitly in the equations, such as the scalars α, β, γ 0, γ 1, η, λ, and M th. Others are implicit and imposed as initial conditions, such as the scalar field M(t=0) and the scalar ξ(t=0), and in the case where the patient is under treatment, at least one additional parameter has to be determined. The goal of this section is to build a calibration method fast and accurate enough to recover an adequate set of parameters describing the tumor evolution.

Simplifying assumptions

As mentioned before, we have eight scalars and one spatial field to identify. These quantities cannot be estimated by in vitro or in vivo experiments. Furthermore, the parameterization problem is ill posed. We can fix ξ(t=0) arbitrarily without loss of generality since the variations of ξ(t=0) can be taken into account with parameters α, β, and λ. For convenience, concerning the order of magnitude in our numerical code, we take ξ(t=0)=0.1. For M, the situation is more complex and we have no universal solution to propose. We choose to take M(t=0)=0.8×T+S. This means that the available quantity of nutrients is lower inside the lesion than outside and that initially these quantities are constant. Note that this property is not satisfied for t>0 because of Equation 9. This is one of the strengths of the model: it is possible to obtain an heterogeneous distribution of nutrients within the tumor during the evolution that accounts for complex evolution and that makes the difference with scalar models dealing only with the volume of the tumor. Again, the ratio 0.8 in the initialization of M is arbitrary and has to be related to M th and K.

Sensitivity analysis

In order to restrict the parameter space, we perform a sensitivity analysis on the model. It aims at determining if some parameters have more influence on the results than others. In this case, it means that the variation ranges of the less meaningful parameters must be modified or that we can simply fix them to a nominal value. For each parameter (p i ) i=1...7=(α,β,γ 0,γ 1,λ,η,M th), we choose a range of variation [ a i ;b i ] given in Table 1. Denoting by T(t,x,y,p 1,…,p 7), the solution given by the PDE system described previously, we compute numerically \(\frac {\partial }{\partial p_{i}}\int _{\Omega }\left (t_{f},x,y,p_{1},\ldots,p_{7}\right)dxdy\) for each i=1 to 7, t f being the final time. We evaluate the mean value m i and the standard deviation S i of these quantities when the values of the parameters (p i ) i=1...7 are uniformly distributed on [ a i ;b i ]. We use Morris method (see [20]) to perform this computation. The corresponding values of (m i ,S i ) are plotted in Figure 2.
Table 1

Parameter space used for the sensitivity analysis

Parameter

Variation range

α

[ 5;25]

β

[ 5;25]

η

[ 0.1;1]

γ 0

[ 0.2;1.4]

γ 1

[ 0;0.3]

λ

[ 0.2;1.2]

M th

[ 0.7;1.1]

Figure 2

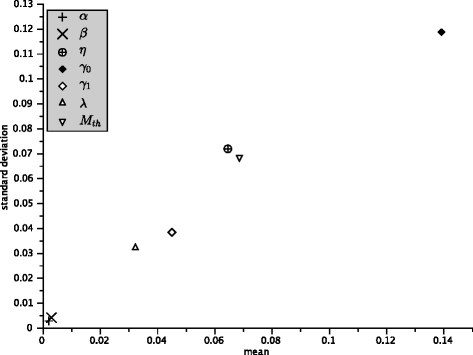

Sensitivity analysis on the tumor growth model using the Morris method. Effect of each parameter on the final tumor volume. The farther the point is from the origin, the more meaningful the corresponding parameter is for the model.

The influence of the parameter can be established by the distance to the origin of the corresponding point (m i ,S i ). In our case, we can see that the most influent parameter is γ 0 which is not surprising as it rules the exponential growth of the tumor. Conversely, the model is almost not sensitive to variations of α and β in the ranges we consider so a part of the inverse problem can be simplified by fixing them thus reducing the degrees of freedom.

Formulation of the inverse problem

Given a sequence of medical images or snapshots of the tumor, we aim at finding a suitable set of parameters able to reproduce the observed behavior. In other words, simulations with this set must fit as well as possible the clinical data. For this, our approach is to use a scalar objective function, which basically quantifies the distance between the observable data and the model simulation, and try to minimize it. There are different ways to measure this distance, and as a criterion, we chose a combination of the comparison of the mass and the L 2 distance as follows. The cost function is denoted by f obj:
$$ {\fontsize{9.5}{6}\begin{aligned} f_{\text{obj}}(p_{1},\ldots,p_{7}) &= w_{1} \times \sum_{i=2}^{n_{s}}\left[ \sqrt{\int_{\Omega}(T_{\text{data}}(t_{i})-T_{\text{model}}(t_{i},p_{1},\ldots,p_{7}))^{2}d\omega} \right] \\ & +w_{2} \times \sum_{i=2}^{n_{s}} \left[ \left| \int_{\Omega}T_{\text{data}}(t_{i},x,y)dxdy-\int_{\Omega}T_{\text{model}}(t_{i},x,y,p_{1},\ldots,p_{7})dxdy\right| \right], \end{aligned}} $$
(12)

where (p 1,…,p k ) is the parameter set used in the model simulation, w 1 and w 2 are weights to balance the influence of each term, and n s is the number of snapshots we have. The first term in the objective function accounts for the shape while the second one only accounts for its volume. Of course, as initial data for our simulation, we use the ‘exact’ value given by the data at time t=t 1, therefore the sum starts at i=2. As a consequence, we need at least two images of the metastasis at different times to personalize the model. The tumor cell density T data(t i ) is extracted from the i th snapshot (corresponding to time t i ). The quantity T model(t i ,p 1,…,p k ) is the tumor cell density given by the simulation at time t i and for the parameters (p 1,…,p k ). To compute the L 2 distance, a data registration is necessary. We simply translate the images in order that their centers of mass match with the center of mass of the first image T 0. The masses are computed by integrating the density on the domain Ω. From a computational point of view, whatever the minimization method is, one has to evaluate many times the objective function. It implies to simulate the model for lots of parameter sets which could be quite expensive. For instance, if we use a gradient algorithm to estimate seven parameters, at each iteration, the model is simulated eight times. To make the calibration faster, we have developed a strategy based on a reduced order method called proper orthogonal decomposition (POD) (see [21]).

Building a reduced order model to speed up computations

POD resolution method for infinite dynamical systems consists in approaching partial differential equation systems with ordinary differential equations by decoupling the time and space variables (see [13] and [14]). The initial infinite dimension problem is replaced by a finite dimension (the smallest as possible) problem. Let us first describe the POD used on the tumor cell density variable T. As we want to decouple space and time variables, we use the following representation for T (or any variable of interest):
$$T(X,t)=\sum_{i=1}^{d} {a_{i}^{T}}(t) {\Phi_{i}^{T}}(X) +\epsilon(X,t), $$
where \({a_{i}^{T}}\) are scalar functions depending on time and \({\Phi _{i}^{T}}\) are spatial functions called modes and represent the geometry of the variable T. The dimension of the reduced problem is denoted by d. As it is an approximation, an error ε(t,X) is committed. The goal of POD is to provide us the best basis of spatial functions \({\Phi _{i}^{T}}\) to minimize the error.These functions \({\Phi _{i}^{T}}\) are extracted from a database of admissible behaviors of T. To generate this database, we sample the parameter space, run the direct model for each parameter set thus obtained, and keep several snapshots \(\left ({S_{k}^{T}}\right)_{k}\) of the variable T. If the sample is correctly chosen, we have a representative set of geometrical configurations for the tumor cell density. Then, we look for the functions \({\Phi _{i}^{T}}\) in the d-dimensional vectorial space generated by the snapshots from the database (we denote by \(E_{h}= \text {Span}\left (\left ({S_{k}^{T}}\right)_{k}\right)\) this approximation space). These functions are taken as an orthonormal basis verifying:
$$\forall h \in \{1,\ldots,d\}, || T(X,t) - \sum_{i=1}^{h} {a_{i}^{T}}(t) {\Phi_{i}^{T}}(X) || = \min_{(F_{i})_{i} \subset E_{h}} || T(X,t) - \sum_{i=1}^{h} {a_{i}^{T}}(t) F_{i}(X) ||. $$
This property is very interesting as it allows us to use a small number of modes without loosing too much accuracy. The basis solution to this minimization problem is extracted from the autocorrelation matrix of the snapshots \(M^{T} \left (M^{T}_{i,j}= \left ({S_{i}^{T}} | {S_{j}^{T}} \right)\right.\), (.|.) being a scalar product on \(\left.\text {Span}\left (\left ({S_{k}^{T}}\right)_{k}\right)\right)\) by the formula (Equation 13):
$$ \forall i \in \{1,\ldots,d\}, {\Phi_{i}^{T}} (X) = \frac{1}{\sqrt{{\lambda_{i}^{T}}}} \sum_{k=1}^{n_{s}} {v_{i}^{T}}[\!k] {S_{k}^{T}}, $$
(13)

where \({\lambda _{i}^{T}}\) denotes the i th eigenvalue of M T and \({v_{i}^{T}}[\!k]\) the k th component of the i th eigenvector of M T .Once we have obtained these POD modes, we compute the projection of the PDE system on the approximation space E h using the eigenmodes \({\Phi _{i}^{T}} (X)\). We use the POD approach on both the tumor cell density T and the pressure field π which are the two fields driven by PDEs in our system. Thus, we obtain the approximations \(T(X,t)=\sum _{i=1}^{n_{T}} {a_{i}^{T}}(t) {\Phi _{i}^{T}}(X)\) and \(\pi (X,t)=\sum _{i=1}^{n_{\pi }} a_{i}^{\pi }(t) \Phi _{i}^{\pi }(X)\), n T and n π being the numbers of modes we use to represent T and π.

Reduced order model on T:
We inject the POD expression of T in Equation 1, where we denote Γ=γ p γ d :
$$ \sum_{i} \frac{\partial {a_{i}^{T}}}{\partial t}{\Phi_{i}^{T}} +\sum_{i} {a_{i}^{T}} \nabla.\left(v{\Phi_{i}^{T}}\right) = \sum_{i} {a_{i}^{T}}\Gamma {\Phi_{i}^{T}}. $$
Then, this equation is projected on the orthogonal basis \(\left ({\Phi _{k}^{T}}\right)_{k}\), which gives:
$$\forall j \in \{1,\ldots,n_{T} \}, \frac{\partial {a_{j}^{T}}}{\partial t} +\sum_{i} {a_{i}^{T}} \left(\nabla.\left(v{\Phi_{i}^{T}}\right) | {\Phi_{j}^{T}}\right) = \sum_{i} {a_{i}^{T}}\left(\Gamma {\Phi_{i}^{T}} | {\Phi_{j}^{T}}\right). $$
After simplification, we have a system of ODE on the POD coefficients \(\left ({a_{i}^{T}}\right)_{i}\) which is solved with an implicit Euler scheme:
$$ \forall j \in \{1,\ldots,n_{T}\}, \frac{\partial {a_{j}^{T}}}{\partial t} = \sum_{i} {a_{i}^{T}}\left(\Gamma {\Phi_{i}^{T}} -\nabla.\left(v{\Phi_{i}^{T}}\right)| {\Phi_{j}^{T}}\right). $$
(14)
That can be rewritten as:
$$ \frac{dA^{T}}{dt}(t)=N^{T}(t) A^{T}(t), $$
where \(N^{T}_{i,j}(t)=\left (\Gamma (t) {\Phi _{j}^{T}} -\nabla.\left (v(t){\Phi _{j}^{T}}\right)| {\Phi _{i}^{T}}\right)\).

Therefore, we avoid the time interpolation phase that was essential in [11] to approximate the time derivative. Consequently, the hypothesis that two consecutive medical data are close in time is not necessary in our case and the accuracy of the scheme is improved.

Reduced order model on π:
From Equations 7 and 6, we obtain:
$$-\Delta \pi = \Gamma T. $$
Then, we use the POD expression for π,
$$-\sum_{j} a_{j}^{\pi} \Delta \Phi_{j}^{\pi} = \Gamma T. $$
Finally, we project this last equation on the orthogonal basis \(\left (\Phi _{i}^{\pi }\right)_{i}\):
$$ \forall i \in \{1,...n_{\pi}\}, -\sum_{j} a_{j}^{\pi} \left(\Delta \Phi_{j}^{\pi} | \Phi_{i}^{\pi}\right) = \left(\Gamma T | \Phi_{i}^{\pi}\right). $$
(15)
Here again, the system above can be written in the compact form:
$$N^{\pi}A^{\pi}(t)=-B^{\pi}(t), $$
where \(N^{\pi }_{i,j}=\left (\Delta \Phi _{i}^{\pi } | \Phi _{j}^{\pi }\right)\) and does not depend on the time and \(B^{\pi }_{j}(t)=\left (\Gamma (t) T(t) | \Phi _{i}^{\pi }\right)\).
Initialization:

For the simulations, we also need to set initial values for the coefficients \(\left ({a_{i}^{T}}\right)_{i}\) and \(\left (a_{i}^{\pi }\right)_{i})\). These values are obtained by projecting the initial configurations of the fields associated on the POD basis: \(\forall i \in \{1,...n_{T}\}, {a_{i}^{T}}(t=0)=\left (T(t=0) | {\Phi _{i}^{T}}\right)\) and \(\forall j \in \{1,...n_{\textit {pi}}\}, a_{i}^{\pi }(t=0)=\left (\pi (t=0) | \Phi _{i}^{\pi }\right)\).

Resolution of the inverse problem

The aim of this section is to sum up the algorithm we use in order to solve the inverse problem associated to the cost function (Equation 12), that is, find (p 1,…,p 7)=argmin(f obj(p 1,…,p 7)). We proceed in two steps.

Step 1:

We perform a Monte Carlo method in order to determine a first approximation of the parameters and to avoid a local minimizer. This consists in comparing simulations performed with parameter sets randomly chosen in an empirical parameter space. We keep the parameters set corresponding to the lower value of the cost function f obj (see Equation 12).

Step 2:

Once we have this first approximation, we start a gradient descent method using the result of the first step as initialization. In this second step, the value of parameters α and β are fixed to those obtained in step 1, since the sensitivity analysis performed in paragraph 4.2 shows a low variability of the results with respect to their values.

Note that the use of the POD method implies that we deal with the evaluation of solutions of ODEs and not of PDEs during this process, and this fact saves a lot of CPU time.

Results and discussion

Tumor growth

The method previously described was applied to our clinical case (Figure 1). The first scan (on 2008/06/07) represents the initial condition for the tumor cell density T. The other one (on 2008/09/22) is used in the objective function from Equation 12 as T data. The process to extract information from this type of medical images is quite simple. First, the tumor is delineated by a radiologist. The scan measures the permeability to X-rays which we assume is proportional to the density of cells. So we consider that the tumor cell density T is proportional to the normalized intensity of the corresponding voxel on the image. To further simplify the problem, we assume, as a first approximation, that tumor cells do not die from hypoxia so we fix γ 1=0. Let us remind that we also set the initial conditions for M and ξ. We still have six parameters to estimate. A parameter space is empirically defined, and we generate a database of simulations on this space. In this case, the database contains 374 simulations; and for each simulation, we save 5 snapshots for both T and π. From this collection of snapshots, we extract the POD modes and the calibration process is launched with the reduced model. For the simulation of the POD model, we only use 36 modes on T and 10 on π which is here a good balance between accuracy and computation speed. We obtain the set of parameters given in Table 2.
Table 2

Parameter set obtained by the inverse problem

α

Angiogenic agent synthesis factor

8.109

β

Angiogenic growth factor

7.241

η

Vasculature destruction factor

0.673

γ 0

Proliferation rate

1.116

γ 1

Death by hypoxia rate

0

λ

Angiogenic agent destruction rate

0.865

M th

Hypoxia threshold

1.045

These parameters are used to make a simulation on the direct model and try to predict the evolution of the tumor. A third CT scan on 2008/12/10 is available to compare our prediction and the real evolution.

The result of this simulation is compared with the observed growth of the metastasis in Figure 3. The prediction from the model is satisfactory. To have a quantitative criterion of evaluation of the prediction, we can consider the mass of the tumor which is drawn in Figure 4.
Figure 3

Comparison between the prediction and the observation. Top row shows the real medical image, below the simulation. The dates are on the left 2008/09/22 (calibration) and on the right 2008/12/10 (prediction).

Figure 4

Mass evolution comparison between the data and the simulations for the tumor growth.

We can see that the horizontal error of prediction of the third scan is less than 10 days. Moreover, the relative error is below 5% of the total duration which is lower than the 10% segmentation error made by the clinician. If we look at the curves, we observe a small difference between the reduced model simulation and the direct model simulation. This is due to the POD hypothesis and the truncation of the POD basis. To quantify the accuracy in shape of the simulation, we calculated spatial indicators as the DICE and the volume concordance given by: \(\displaystyle {\text {DICE} = 100 \times \frac {2*|T_{\text {model}}\bigcap T_{\text {data}}|}{|T_{\text {model}}|+|T_{\text {data}}|}}\) and \(\displaystyle {\text {VC} = 100 \times \left (1-\frac {|T_{\text {model}} - T_{\text {data}}|}{|T_{\text {data}}|}\right)}\). Moreover, the temporal prediction error is another significant indicator. Indeed, clinicians often need to know when the tumor will reach a critical size. It could be, for instance, the size over which the tumor cannot be treated using radiofrequencies. We denote by t i the time of the i th exam and t i′ the time when the simulated tumor reaches the size of the real tumor at the i th exam. It is relevant to look at the delay between the simulation and the real case t i t i′ and the normalized delay \(100 \times \frac {t_{i}-t'_{i}}{t_{i}-t_{0}}\), i=1,2. The values at the calibration time point (2008/09/22) and the final scan (2008/12/10) are given on Table 3.
Table 3

Scalar indicators for the tumor growth of the first clinical case: DICE, volume concordance, and delays



2008/09/22

2008/12/10

DICE

90.96%

87.21%

Volume concordance

82.54%

77.76%

Delay (days)

0

−6.7

Normalized delay

0%

−3.6%

Chemotherapy

Given the fast growth of this metastasis, clinicians decided to treat the patient with a chemotherapy. The treatment starts just after the last scan on 2008/12/10 and ends on 2009/06/29. To monitor the efficiency of the treatment, three control scans were planned: two during the treatment (on 2009/03/21 and 2009/05/27) and a last one, 1 month after the end of the therapy (on 2009/07/27). This last one shows a relapse as the tumor starts growing again from the end of the treatment. It is interesting for us to calibrate the model on this decreasing phase to try to predict the response to the treatment and possibly the relapse. As the model has already been parametrized on the growth phase, we keep the same parameters from this calibration and use the cytotoxic drug modeling given in Equations 10 and 11. This second inverse problem is easier as the only parameter to estimate is δ. This time again, we need two images. We use the last one before treatment (on 2008/12/10) as the initial condition and the first control (on 2009/03/21) to parametrize. We find δ=1.05 and then the direct model is simulated up to after the date of the last scan (2009/07/27).

The evolution of the tumor mass during the treatment provides a good insight on the therapeutical efficacy. It is given in Figure 5 and we can see that here again, the model is predictive for this case and provides a good estimation of the response of the patient to chemotherapy. The tumor shape during treatment obtained by simulation is compared to the clinical data in Figure 6, and the shape indicators are given on Table 4.
Figure 5

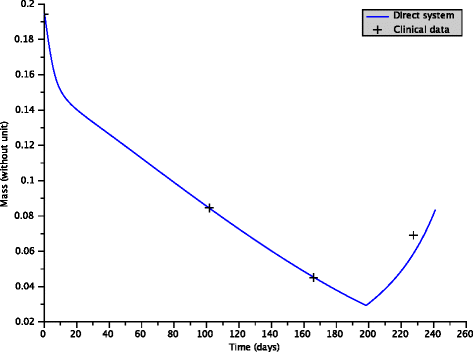

Mass evolution comparison between the data and the simulations under treatment.

Figure 6

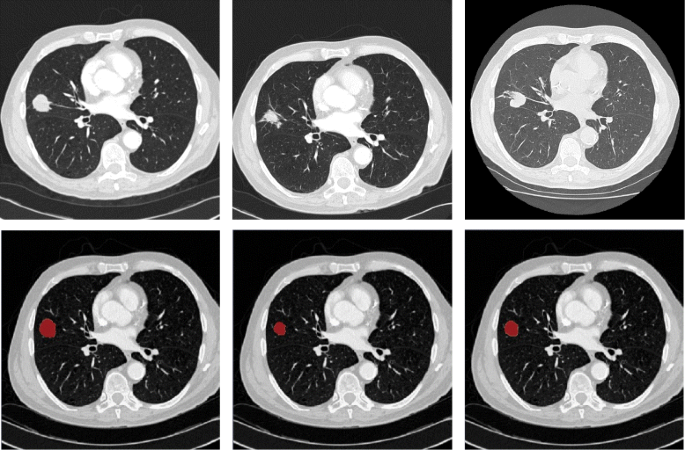

Comparison between the prediction and the observation for the tumor decrease. Comparison between the prediction and the observation for the tumor decrease due to treatment and the relapse post treatment: above the real medical image, below the simulation. The dates are on the left 2009/03/21 (calibration) in the middle 2009/05/27 (prediction for the response to treatment) and on the right 2009/07/27 (prediction for the relapse).

Table 4

Scalar indicators for the tumor under chemotherapy and rebound of the first clinical case: DICE, volume concordance, and delays



2009/03/21

2009/05/27

2009/07/27

DICE

92.26%

87.44%

84.79

Volume concordance

84.41%

74.56%

69.9%

Delay (days)

0.5

−0.84

−6.4

Normalized delay

0.5%

−0.5%

−2.8%

The tumor shape is quite well reproduced by the model for the first control scan which we use to find the treatment parameter δ. However, on the last control scan made during the cure (on 2009/05/27), the tumor is quite hard to delineate due to various physiological phenomena that are not taken into account in the model (such as edema or fibrosis). It results from the cytotoxic effects of the treatment on the tumor cells. Finally, the model thus calibrated gives a good prediction of the relapse after the end of the chemotherapy. For this last time point, shape comparison provides a good result.

Another clinical test case

The whole calibration method described previously was used on another case of tumor growth. Here again, we use two scans at different time points to calibrate the model and a third image to quantify the accuracy of the prediction. The mass comparison is given in Figure 7.
Figure 7

Second test case: mass evolution comparison between the data and the simulations.

In this case, the growth is slower than in the previous case and the model is able to reproduce such a kind of dynamics. Indeed, the time error in prediction is about 5.6 days which, at the time scale we work and considering the tumor registration uncertainties, is a satisfactory result. The shape of the simulated tumor is also satisfying according to the spatial distribution of tumor cell densities in Figure 8 and the indicators on Table 5.
Figure 8

Comparison between the prediction and the observation for the second test case. Above the real medical image, below the simulation. The dates are on the left 2010/03/11 (calibration) and on the right 2010/07/16 (prediction).

Table 5

Scalar indicators for the tumor growth of the second test case: DICE, volume concordance, and delays



2010/03/11

2010/07/16

DICE

85.41%

88.69%

Volume concordance

70.59%

76.45%

Delay (days)

0

5.6

Normalized delay

0%

2.3%

Conclusion

To try to answer the questions raised by our clinical case, a new approach was developed. First, a model was written that takes important mechanisms of tumor growth like hypoxia or angiogenesis into account. Yet, the model is simple enough to be calibrated for a specific patient. We have described a new calibration method based on proper orthogonal decomposition to fit the patient data and perform a prediction of the tumor evolution; prediction which is confirmed qualitatively and quantitatively by the medical imaging. As the model contains various kinds of treatments, we could, on the same clinical case, establish a precise quantitative prediction of the response to the treatment at the end of the protocol. As shown in Figure 3, the evolution is really quick between 2008/09/22 and 2008/12/10 and is difficult to predict by the clinicians only using the scans. In that kind of circumstances, a mathematical approach like ours could have helped the oncologist in his diagnosis. On this particular case, the interest of the simulation is clear. For the time being, we do not use any data on the real vasculature. With the constant progress of medical imaging, one can imagine that such data will soon be available. This advancement will validate our modeling of the vasculature M. We mainly used here two dimensional data extracted from scans (that naturally give a 3D view of the tumor). The whole method was coded for three-dimensional data, from the direct model simulation to the POD projection and the calibration algorithm. Currently, it is computationally too expensive to build a database in 3D so we cannot use the whole 3D process on the clinical case. However, by improving and making the database generation faster, it could be interesting to use a 3D method as the reduced model simulation calculation time is almost the same as in 2D. Moreover it would allow us to free ourselves from the choice of a particular slice.
